Home / Products / 3D MATERIAL / PETG CF
| Place of Origin: | China |
| Brand Name: | DOWELL3D |
| Model Number: | PETG-CF Filament |
| Certification: | ROHS |
| Minimum Order Quantity: | 10KG |
| Price: | EXW US$11.62/kg |
| Packaging Details: | 1kg/roll,3kg/roll,5kg/roll,10kg/roll |
| Delivery Time: | 7-10 days |
| Payment Terms: | Bank Transfer |
| Supply Ability: | 10000kg/week |
PETG-CF 3D Filament
·High strength
·Matte texture
·Hidden layer texture
DOWELL3DPETG-CF 3D Filament Product Information:
PETG-CF is a kind of PETG filament filled with carbon fiber, which improves the anti-warping performance of the filament,improves the overhang surface and surface quality,and also gives the material a frosted surface texture.
High Strength and High Rigidity!
The strength and modulus of PETG are enhanced by chopped carbon fibers. The printed model has good hardness, high strength, and is durable as a structural part.

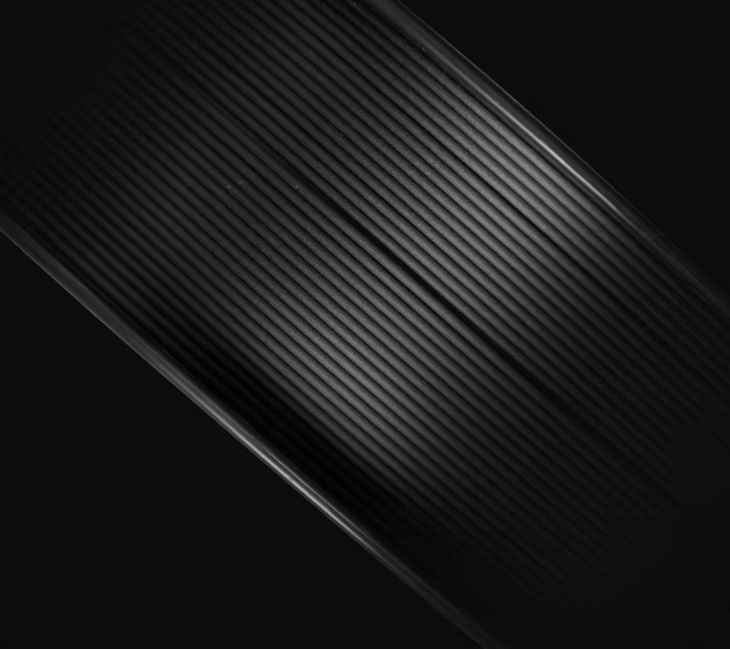

DOWELL3D Filaments are Neatly Winding!
Upgraded neat winding, no room for tangle, just enjoytrue tangle free printing without annoying disturbance.
High Precision Products with Smooth surfaces!
We meticulously maintain a diameter tolerance within ±0.02mm to ensure unobstructed nozzle performance and achieve a flawlessly smooth surface finish on the printed models.
Fit 90% FDM 3D Printer

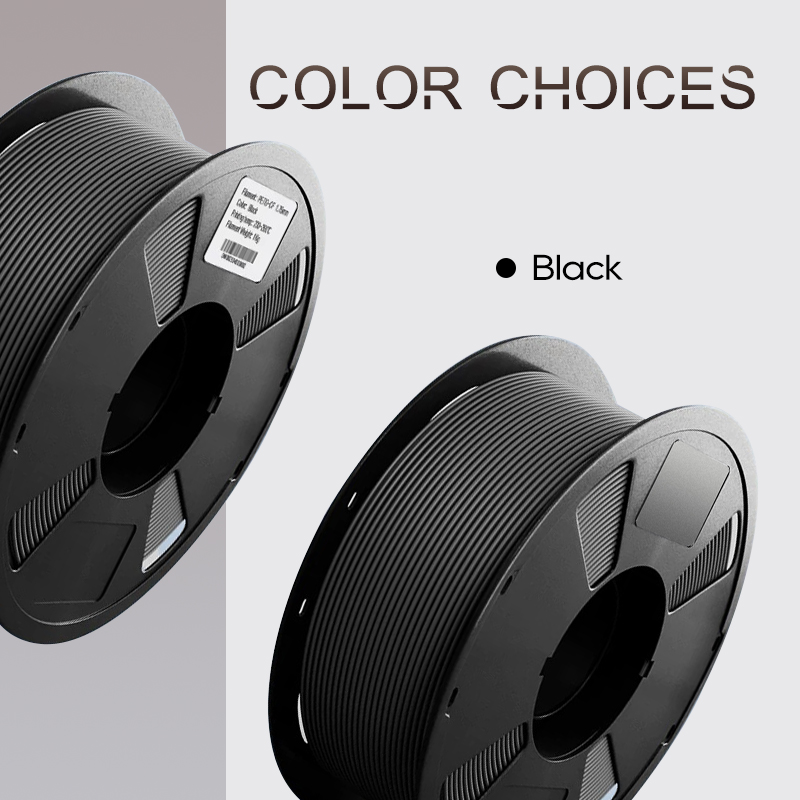

Multiple colors available for selection
Durable and freight friendly

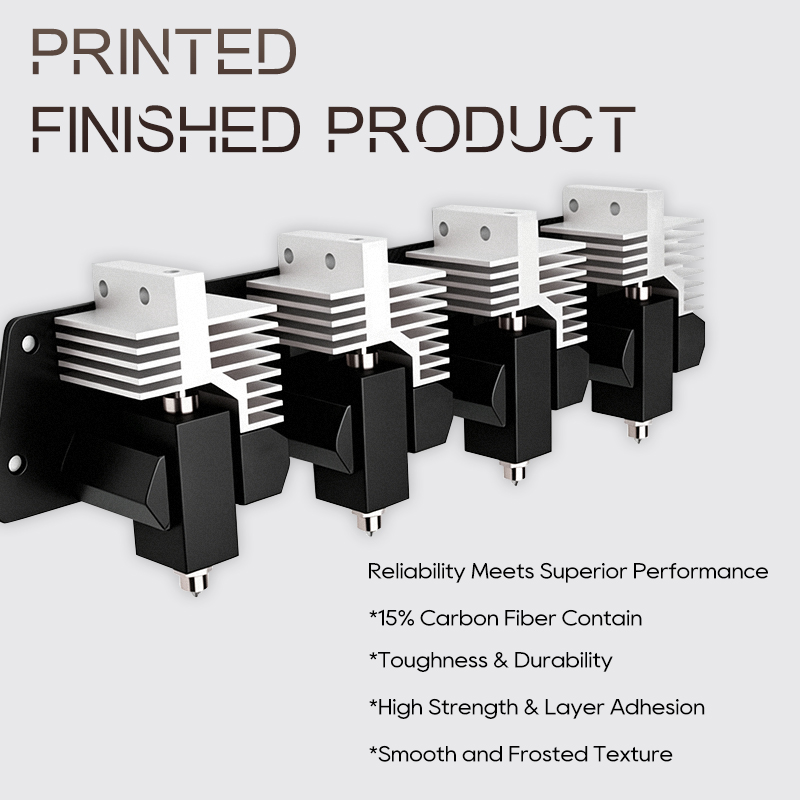

Printed Model Display

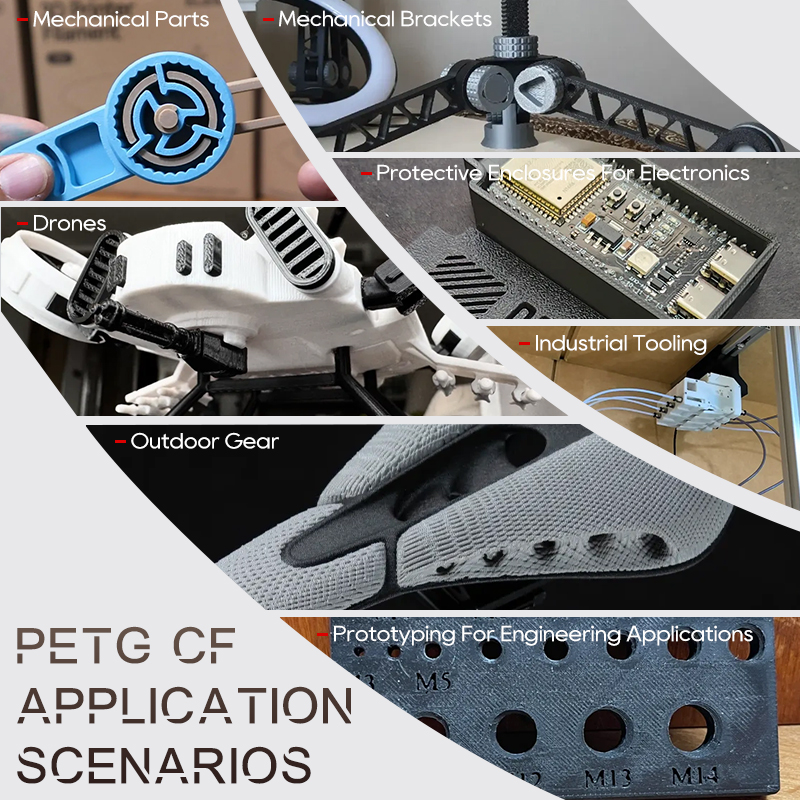

Applications: PETG-CF material is mainly used in industrial design parts models

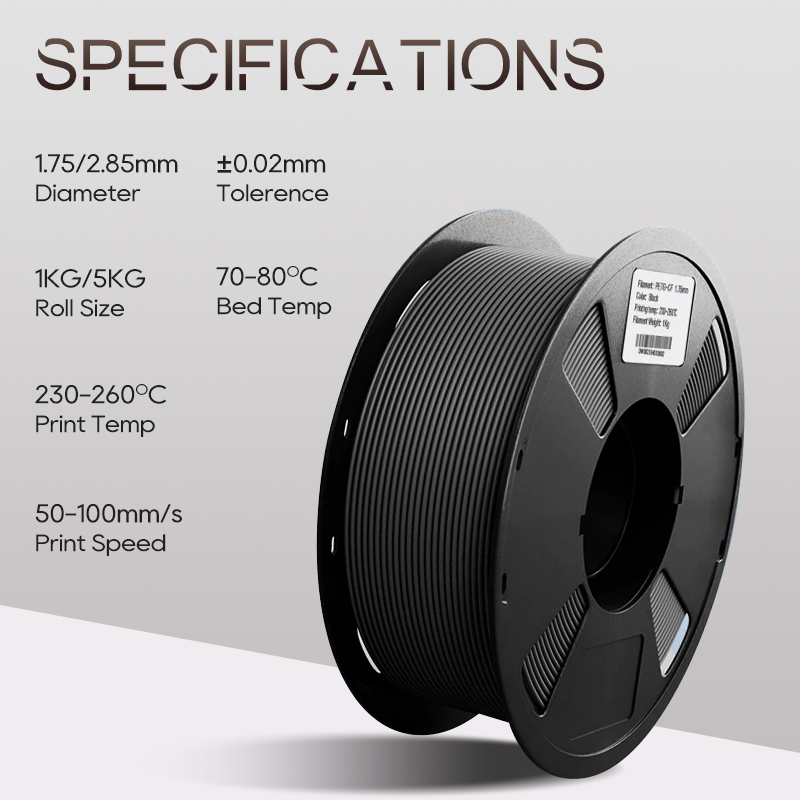

Specifications:
| Product | PETG-CF Filament |
| Diameter | 1.75mm/2.85mm |
| Tolerance | ±0.02mm |
| Print temp | 220~250℃ |
| Platform temp | 60~80℃ |

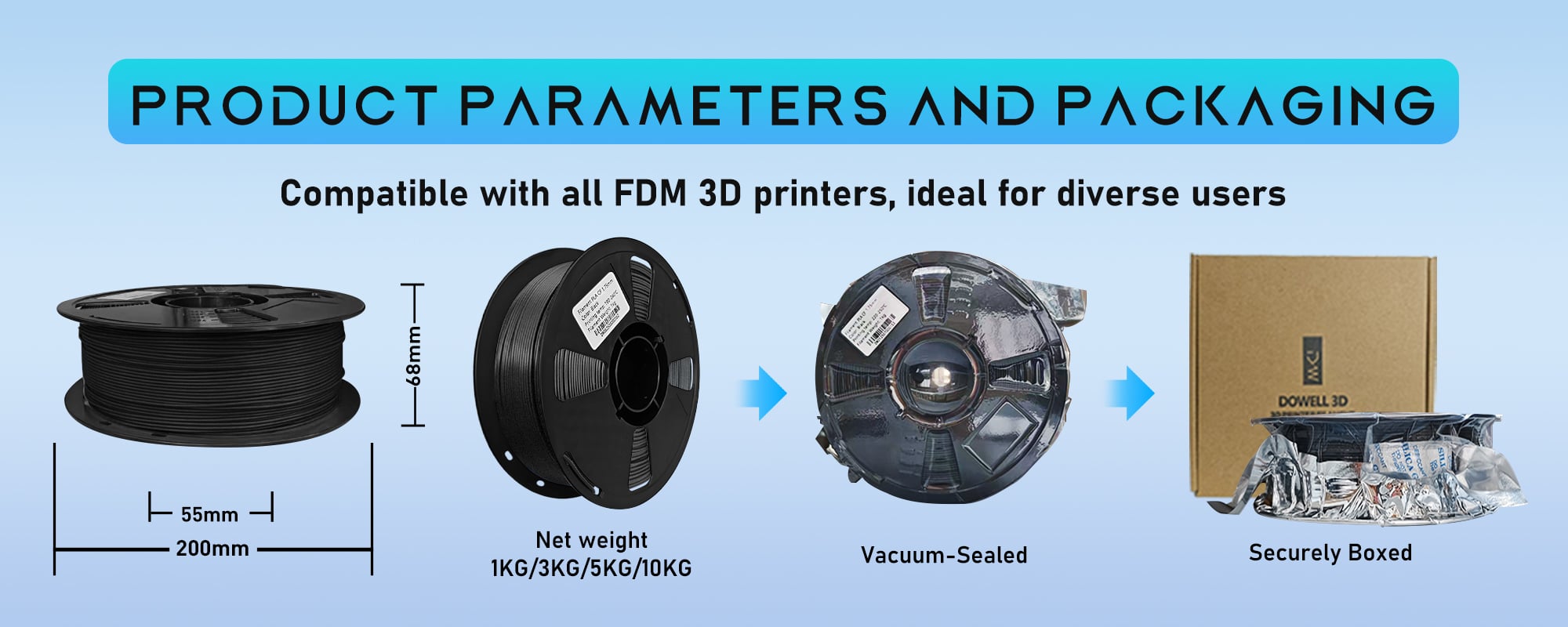

| Roll size | 1kg/3kg/5kg |
| Print speed | ＜200mm/s |
| Customization | Logo,Inner box,Packaging |
| Features |
PETG Carbon Fiber has very good chemical resistant polymer with very low moisture absorption and excellent dimensional stability. PETG-CF has excellent ductility; wide processing temperature range. |
 |
 |
 |
Storage and usage ▶When replacing filaments, be sure to hold the tip tightly and do not slip from your hands to prevent the filaments from knot and wrap the thread! ▶We recommend that you place it in a dry environment (relative humidity less than 20%) during normal storage or use. Please keep it sealed when not in use; please use the opened filaments as soon as possible. If the filament has become damp, it is recommended to dry it in an oven to eliminate the moisture absorbed into the filament before use. ▶PETG-CF (carbon fiber content: 12%) filaments have strong rigidity and should not be bent excessively. ln the feeding pipeline, excessive bending of the filaments should be avoided as much as possible to cause the filaments to break. ▶For stronger Z-direction (inter-layer) bond strength， set a higher infill density and use an enclosed printer or set a smaller fan percentage to avoid excessive cooling ▶PETG-CF contains carbon fiber. Long-term use may cause excessive wear of the nozzle and extruder gear. It is recommended to use wear-resistant nozzles such as hardened steel nozzles or ruby nozzles. lf possible, you can choose hardened steel extruder gears. |
Competitive Advantage:cheap/high-quality/excellent performance/
