Dowell3d is a manufacturer with 11 years of experience in R&D, production, and export of large-scale industrial 3D printers.
It has hundreds of easy-to-use large-format 3D printers designed for industrial applications.
They are suitable for producing high-quality parts in any environment, whether it is factory tools, furniture, portrait prototypes,
or end-use parts, The Dowell 3d printer is a durable and cost-effective machine.

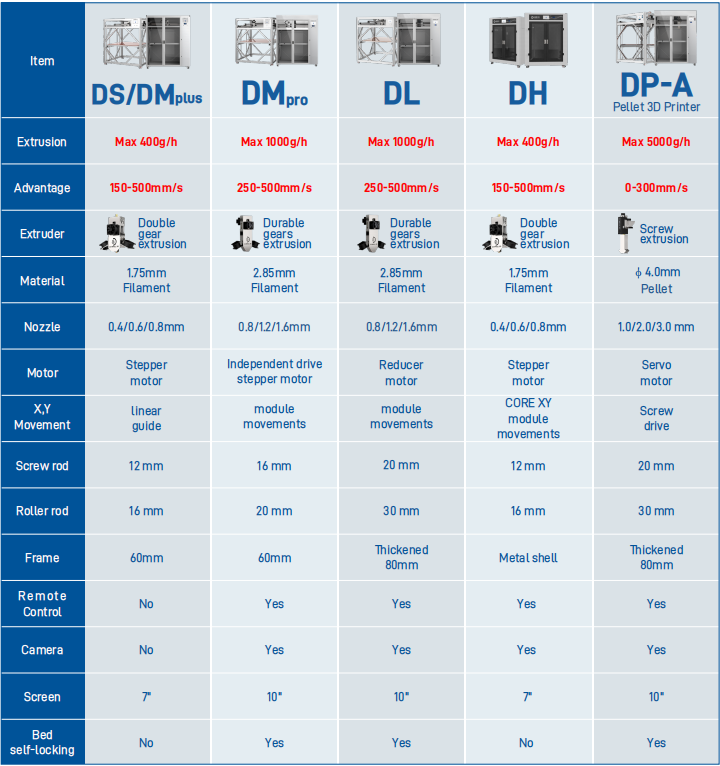

DOWELL 3D Printer Series Configuration Comparison

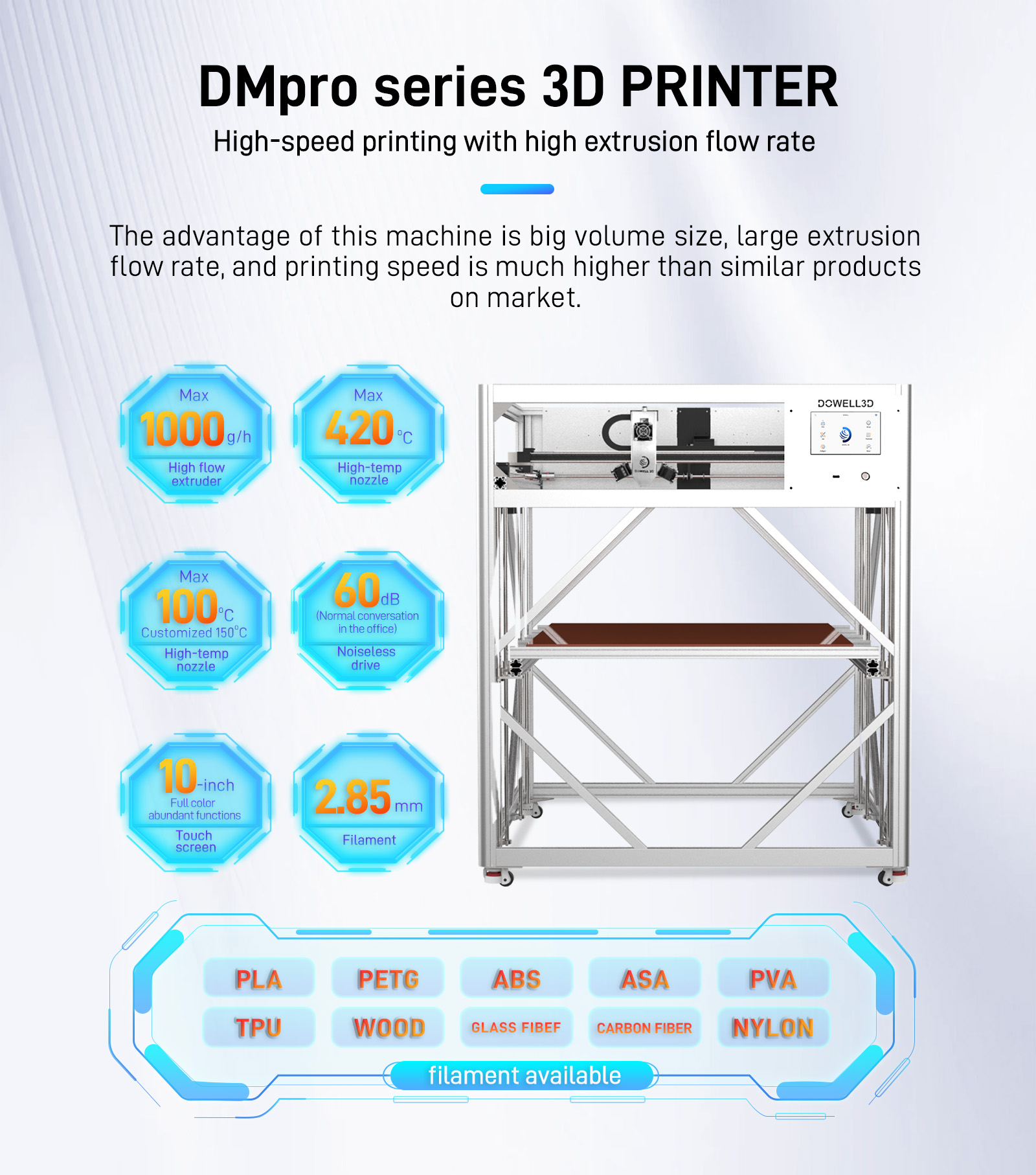

DMPro Series Printer Parameters
Model |
DMPro Series Printer |
|
Printing size |
800*800*600mm to 1200*2000*2000mm |
|
Frame: |
60mm aluminum section |
|
Operation Firmware: |
Independent research and development |
|
Movement of X&Y axis: |
Industrial-grade motion module |
|
Printing bed: |
6mm tempered glass |
|
Heating bed: |
With a digital temperature controller |
|
Bed temperature: |
0-100°c (optional 150°c) |
|
Nozzle size: |
0.8,1.2,1.6mm |
|
Nozzle temperature |
0-420℃ |
|
Operation Interface: |
10" TFT full Color |
|
Voltage: |
110V/220V |
|
Positional accuracy: |
0.02mm |
|
Layer accuracy: |
0.04-0.6mm |
|
Input format: |
STL/OBJ/Gcode |
|
Filament diameter: |
2.85mm |
|
Connection: |
U disk/SD Card/ Wifi |
|
Standard functions: |
*Auto-leveling *filament sensor * nozzle anti-collision *Visible Printing status *Z-offset adjustment *Visible temperature graph *Accelerations *Configuration editable *Remote control
*External camera can be installed *Gcode viewer
*History Record *Emergency stop button
|
|
Customization Options: |
1. Dual extruder
2. Constant temperature enclosure
3. Printing size
4. 150°c heating bed
|
|
6mm tempered glass platform
Whole bed heated by silicon rubber heater evenly, precise control temperature 0-100 degrees.
Super load capacity more than hundreds kilograms.
Industrial grade sliding module movements
Industrial-grade motion modules used, to achieve the mechanical precision, improving the production
speed, accuracy and repeatability of printed parts.
Detects the exhaustion of material in the 3D printer. When the materials are exhausted, the 3D printer
will automatically stop until new materials are replaced, with high sensitivity, stability, and reliability.
Thanks to a powerful extrusion system, extrusion speeds of 1000g per hour lead the entire 3d printing industry,
speeding up your workflow and reducing costs.
420°c high temperature nozzle
Dowell3D's self-developed 420-c high temperature nozzle is compatible with a wide range of materials.
Strong Frame Body
High quality strong aluminum alloy main body, stable for large & heavy 3d printing.
Wide Choice of Printing Size
Besides the standard sizes below, you can also contact us to customize your preferred print size.
ABOUT US
Luoyang Dowell Electronics Technology Co., Ltd is a technology-based enterprise integrating R&D, manufacturing,
and sales based on technological innovation and core patents.
Dowell technology has independent patented technologies, relying on a strong technical research and development,
production management, quality control, and market development team, it has won the recognition of users in the
global market with high-quality after-sales service, and has become the leading enterprise of Large 3d printers.
